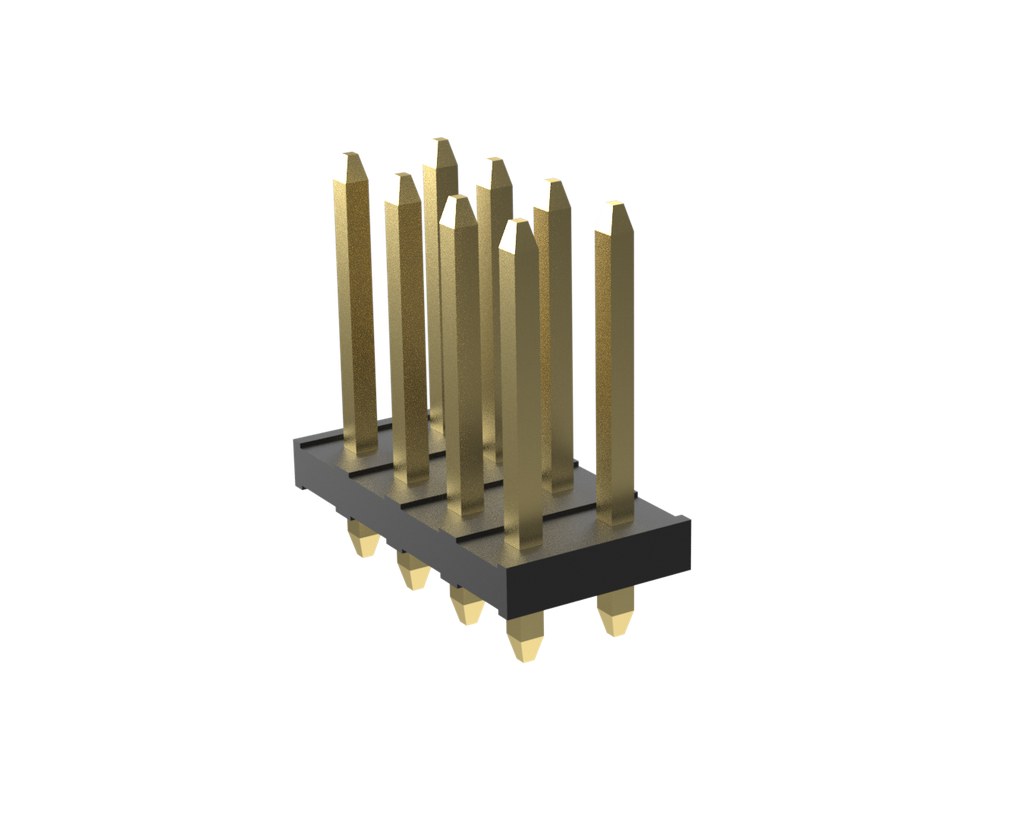

PAN-XX-X-C/D

PAN Series
https://www.plastronconn.com/web/image/product.template/101/image_1920?unique=f4a266c

This combination does not exist.

Type: Header
Pitch(mm): 2.0mm
Operation Direction: Straight
PCB Mounting: DIP

Specifications

Current Rating 1A Voltage Rating AC 125 V
Contact Resistance
20mΩMax. Initial
Operating Temperature-40℃~+105℃
Insulation Resistance
1000MΩ
Withstanding Voltage500V AC/60S
Contact Material
Copper Alloy
Housing MaterialThermoplastic. UL 94V-0

Mating With

Straight

PTFZ

PQEZ

PQFZ

PBTX

Right Angle

PTRZ

PTCZ

SMT

Top En​try

SPTFZ


SPTAF


SPTEF

Bottom En​try

SPTFF

Right Angle

SPTCZ

Download

PDF

PAN-XX-X-C/D

3D

PAN
