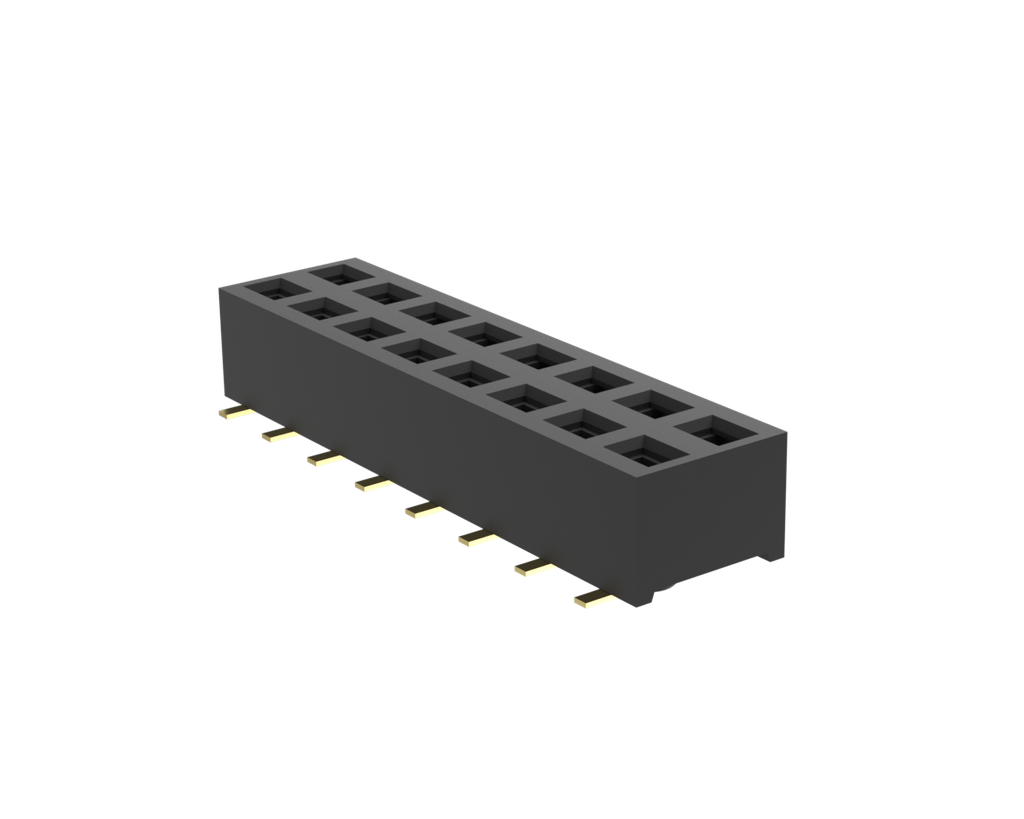

SPAGZ-XX-X-X-X

SPAGZ Series
https://www.plastronconn.com/web/image/product.template/77/image_1920?unique=9d8c662

This combination does not exist.

Type: Socket
Pitch(mm): 2.54mm
Operation Direction: Right Angle
PCB Mounting: SMT

Specifications

Current Rating 3A Voltage Rating AC 125 V
Contact Resistance
20mΩMax. Initial
Operating Temperature-40℃~+105℃
Insulation Resistance
1000MΩ
Withstanding Voltage500V AC/60S
Contact Material
Copper Alloy
Housing MaterialHigh Temperature
Thermoplastic. UL 94V-0
Max. Processing Temperature
260℃ for 10 Seconds


Mating With

Straight

XHZ-XXS

XHT-XXS

Right Angle

XHZ-XXR

XHT-XXR

SMT

Side En​try

SXHZ

Download

PDF

SPAGZ-XX-X-X-X

3D

SPAGZ
