Specifications
| Current Rating | 1.5 AMP MAX. | Voltage Rating | 150V AC MAX.
|
| Operating Temperature | -30°C ~ +70°C | Contact Material | Phosphor Bronze(C5210R-EH);T=0.3mm |
| Housing Material | PA10T+35%GF(VICNYL R635NH);UL 94V-0, Color: Black |

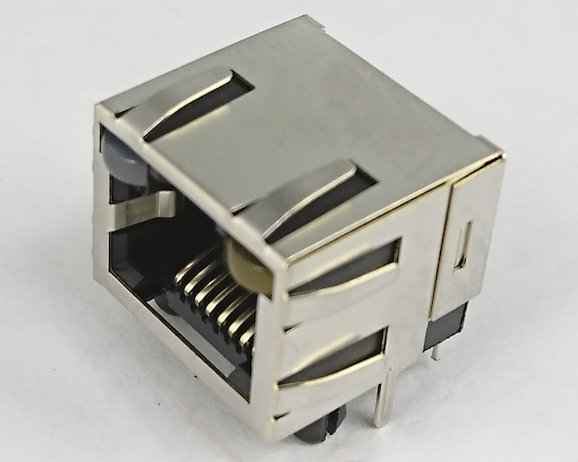

JABCADKBXK
| On PCB Height(mm): 5.8mm |
| Type: DIP 2.1 |
| Pitch(mm): 1.02mm |
