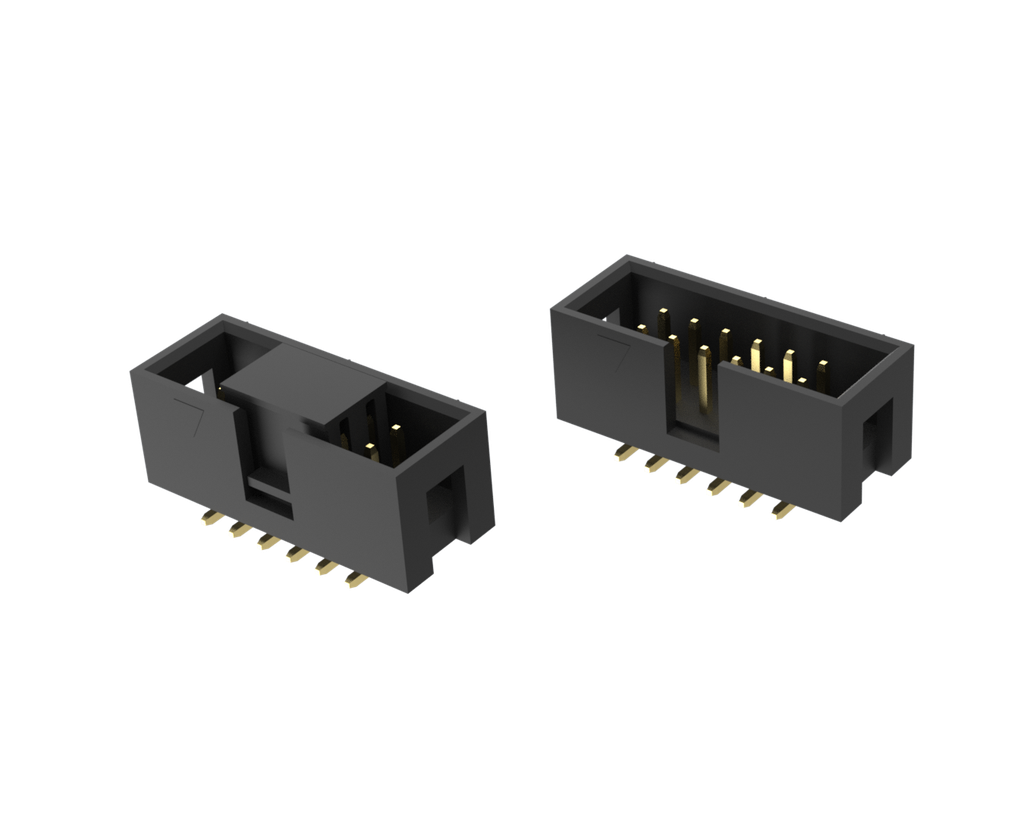

SPHS-XXS-X-X-X-X-X

SPHS Series
https://www.plastronconn.com/web/image/product.template/60/image_1920?unique=5062937

This combination does not exist.

Type: Box Header
Pitch(mm): 2.54mm
Operation Direction: Right Angle
PCB Mounting: SMT

Specifications

Current Rating 3A Voltage Rating AC 125 V
Contact Resistance
20mΩMax. Initial
Operating Temperature-40℃~+105℃
Insulation Resistance
1000MΩ
Withstanding Voltage500V AC/60S
Contact Material
Copper Alloy
Housing MaterialHigh Temperature
Thermoplastic. UL 94V-0
Max. Processing Temperature
260℃ for 10 Seconds


Mating With

Straight

BPHFZ-XXS

XFCS

Right Angle

BPHFZ-XXR

Download

PDF

SPHS-XXS-X-X-X-X-X

3D

SPHS-XXS-X-X-X-X-X
