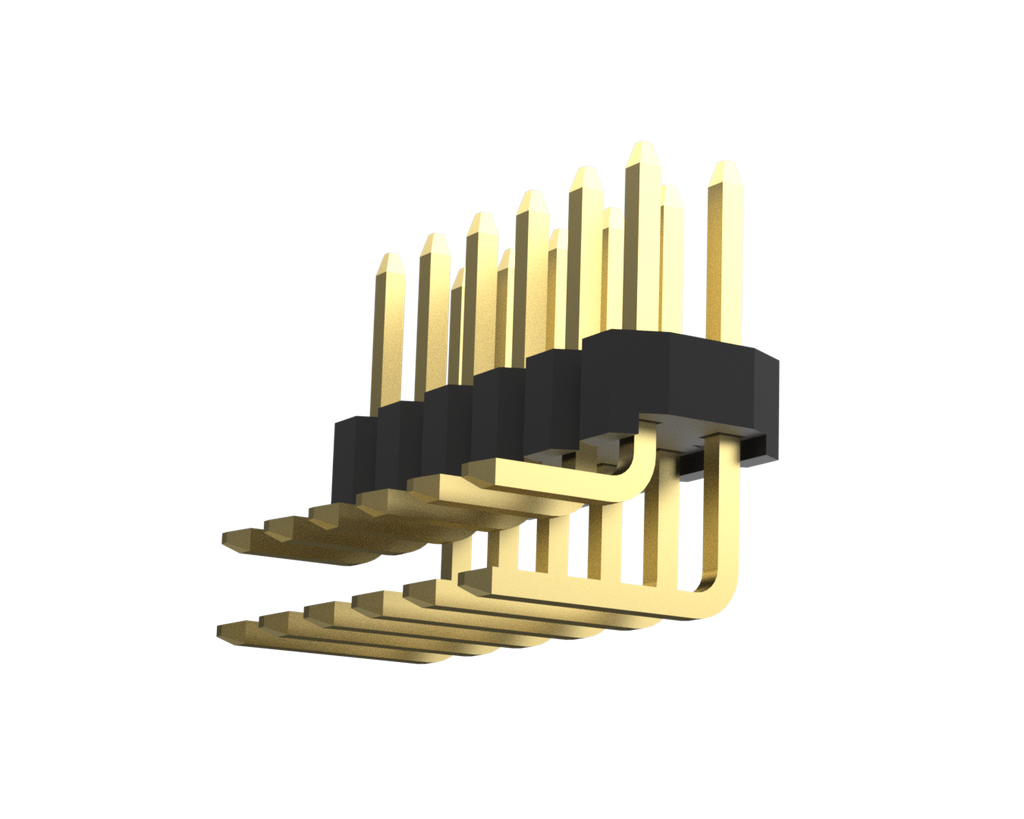

XTZ-XXR1-X-C/D-X

XTZ Series
https://www.plastronconn.com/web/image/product.template/100/image_1920?unique=621f3b1

This combination does not exist.

Type: Header
Pitch(mm): 2.0mm
Operation Direction: Right Angle
PCB Mounting: DIP

Specifications

Current Rating 1A Voltage Rating AC 125 V
Contact Resistance
20mΩMax. Initial
Operating Temperature-40℃~+105℃
Insulation Resistance
1000MΩ
Withstanding Voltage500V AC/60S
Contact Material
Copper Alloy
Housing MaterialThermoplastic. UL 94V-0

Mating With

Straight

PTFZ

PQEZ

PQFZ

PBTX

PFTZ/FTF

Right Angle

PTRZ

PTCZ

SMT

Top En​try

SPTFZ


SPTAF


SPTEF

Bottom En​try

SPTFF

Right Angle

SPTCZ

Download

PDF

XTZ-XXR1-X-C/D-X

3D

LTZ-XXR2
