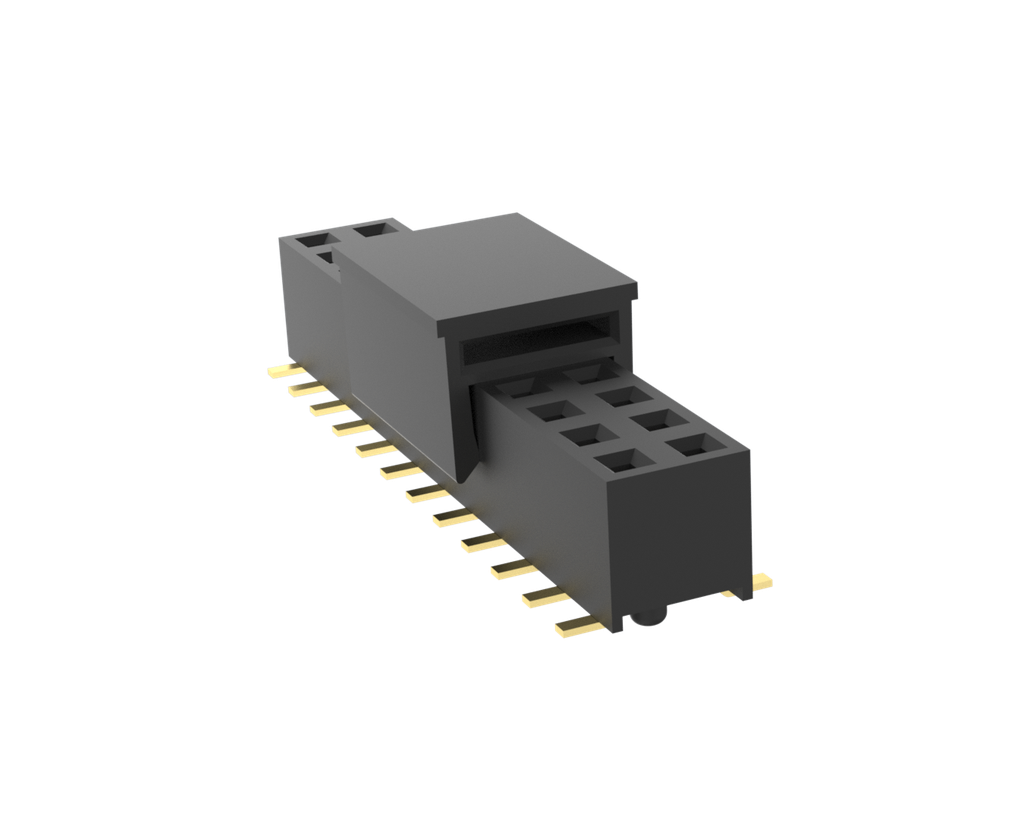

SPTFZ-XXW1-X-X-X

SPTFZ Series
https://www.plastronconn.com/web/image/product.template/89/image_1920?unique=e23e640

This combination does not exist.

Type: SMD Socket
Pitch(mm): 2.0mm
Operation Direction: Right Angle
PCB Mounting: SMT

Specifications

Current Rating 1A Voltage Rating AC 125 V
Contact Resistance
20mΩMax. Initial
Operating Temperature-40℃~+105℃
Insulation Resistance
1000MΩ
Withstanding Voltage500V AC/60S
Contact Material
Copper Alloy
Housing MaterialHigh Temperature
Thermoplastic. UL 94V-0
Max. Processing Temperature
260℃ for 10 Seconds


Mating With

Straight

PAN

XTZ-XXSX

XF

XTT-XXSX

XDD

Right Angle

XTZ-XXR

XTT-XXR

SMT

Top En​try

SPTZ


SPTG


SPTS


SPTU

Download

PDF

SPTFZ-XXW1-X-X-X

3D

SPTFZ-XXW1
